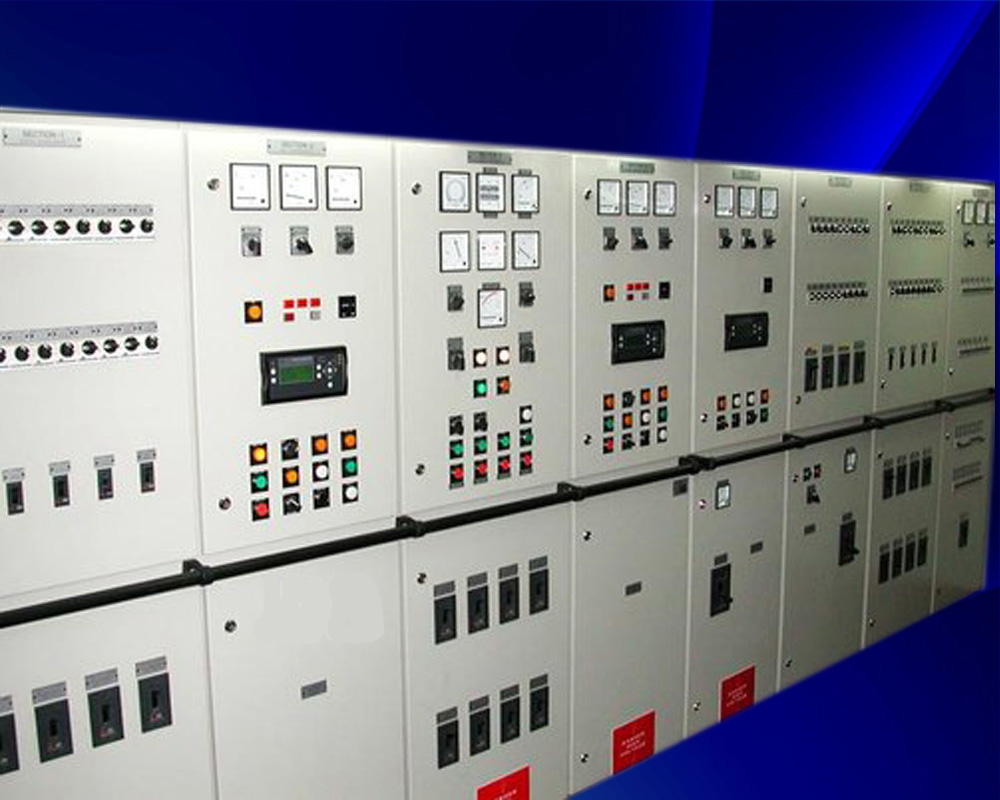

Main LT Panels
Main LT Panel is an electrical transmission board that gets control from generator or transformer and conveys the same to an electric device and transmission board. We are Manufacturers of LT Panel which are very special designed ACDB manufactured by us are resistant to vibration, moisture, and temper.

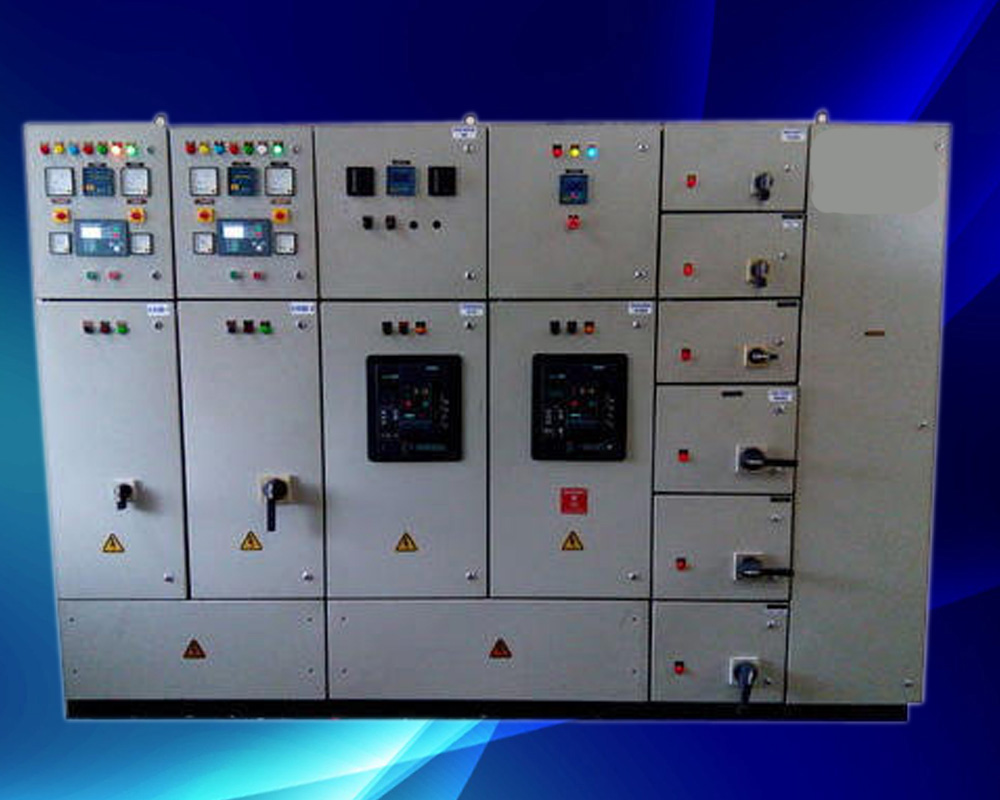

Power Control Panels
Power Control Centres are used for distribution and control of various power source used in industry. Normally Power Control Centres is installed near power source hence fault level is high. It is designed to suit fault level of 50KA or 65 KA for 1 sec. Busbar system in Power Control Centres are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment.

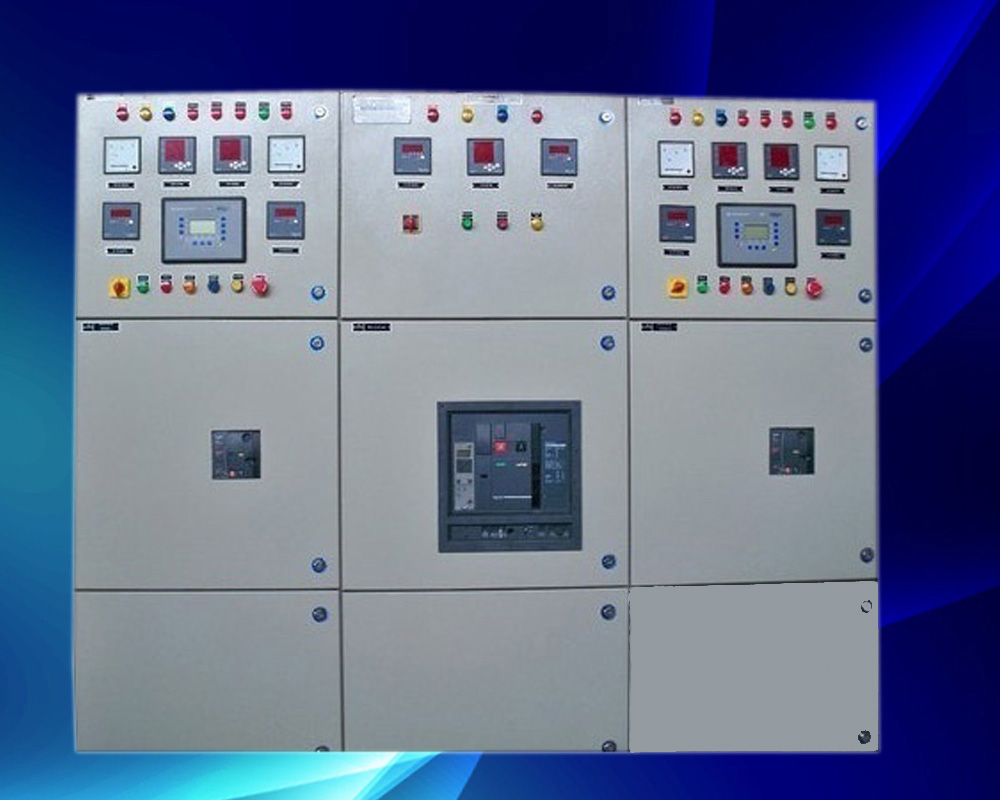

Auto/Manual Synchronization
Synchronization panels are mainly designed and used to meet power system requirements. These panels function both manually and with an automatic synchronizing function for two or more generators or breakers. They are widely used in electrical components.

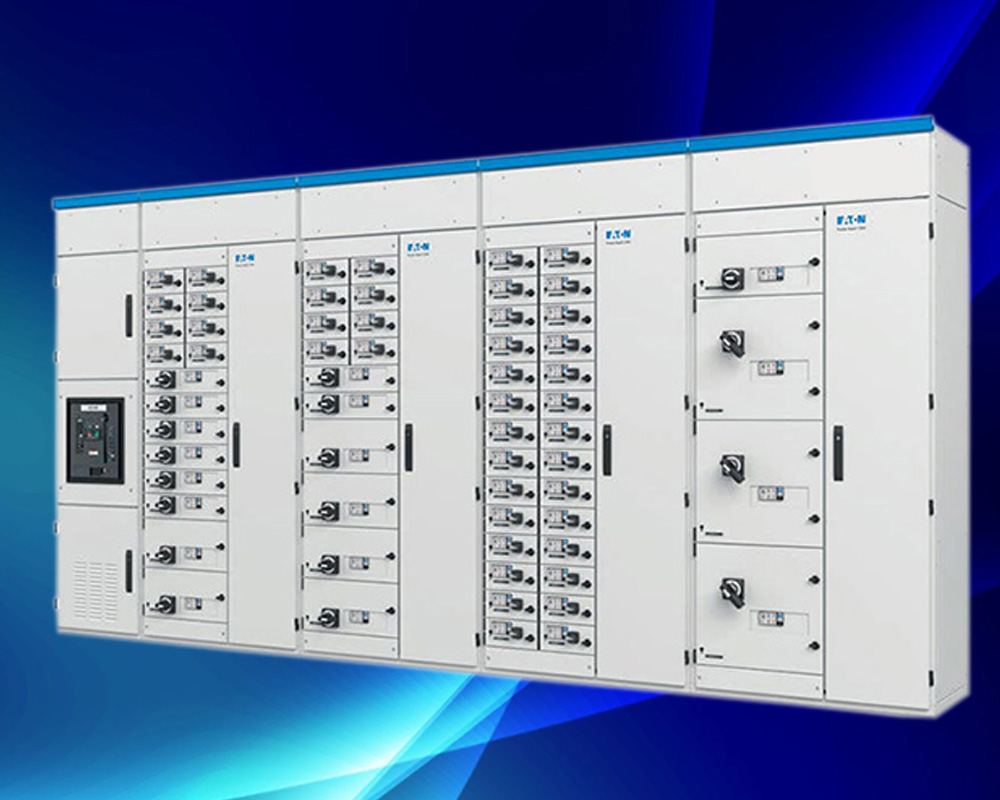

Motor Control Centers
In many commercial and industrial applications, quite a few electric motors are required, and it is often desirable to control some or all of the motors from a central location. The apparatus designed for this function is the motor control center (MCC).A combination starter is a single enclosure containing the motor starter, fuses or circuit breaker, and a device for disconnecting power. Other devices associated with the motor, such as pushbuttons and indicator lights may also be included.

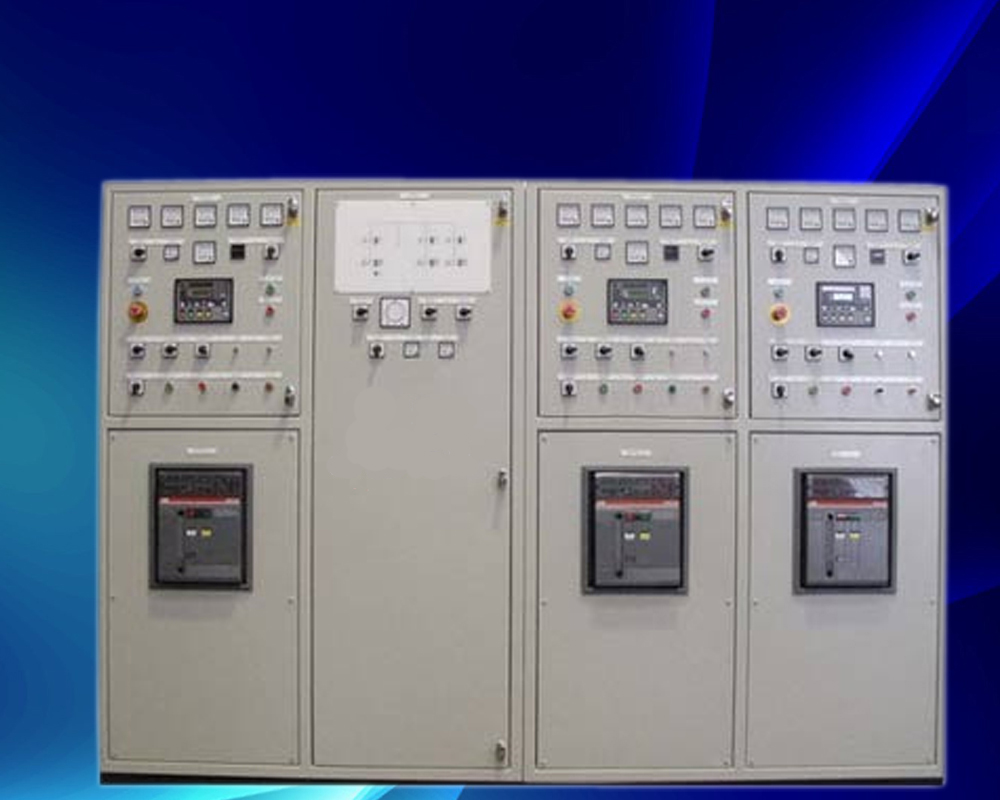

AMF Panels
Automatic mains failure (AMF) panels, often referred to as automatic transfer switch (ATS) panels, make the power switch to emergency standby generators in the event of a significant loss of mains power or total blackout. Without AMF panels, generators need to be operated manually and that can mean lost data, potential damage to electrical equipment, and huge amounts of disruption.
AMF and ATS panels monitor the incoming AC mains supply, activate the standby generator when mains power fails, and make an automatic electrical transfer of the building’s load from the mains to the generating set. When the mains supply returns, the AMF panel controls a return to the mains supply and shuts down the generator after a suitable cooling run.

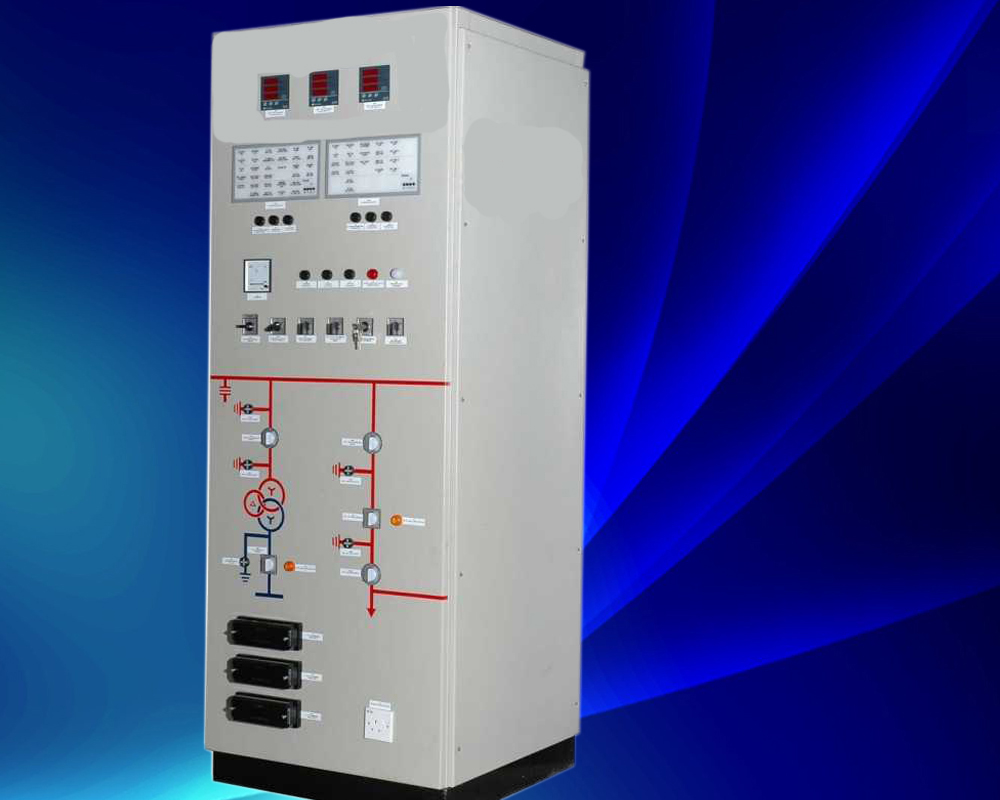

Control and relay Panel
Providing customized sotions for utility, industrial and infrastructure distribution networks.
A Control & Relay Panel (CRP) solution is designed to control several feeders, through medium voltage indoor and outdoor switchgear in a primary distribution substation. The CRP solution can also be extended to incorpo rate substation. HMI, time synchronization, metering and networking functionality in the substation and thereby avoid requirement of a separate control room.

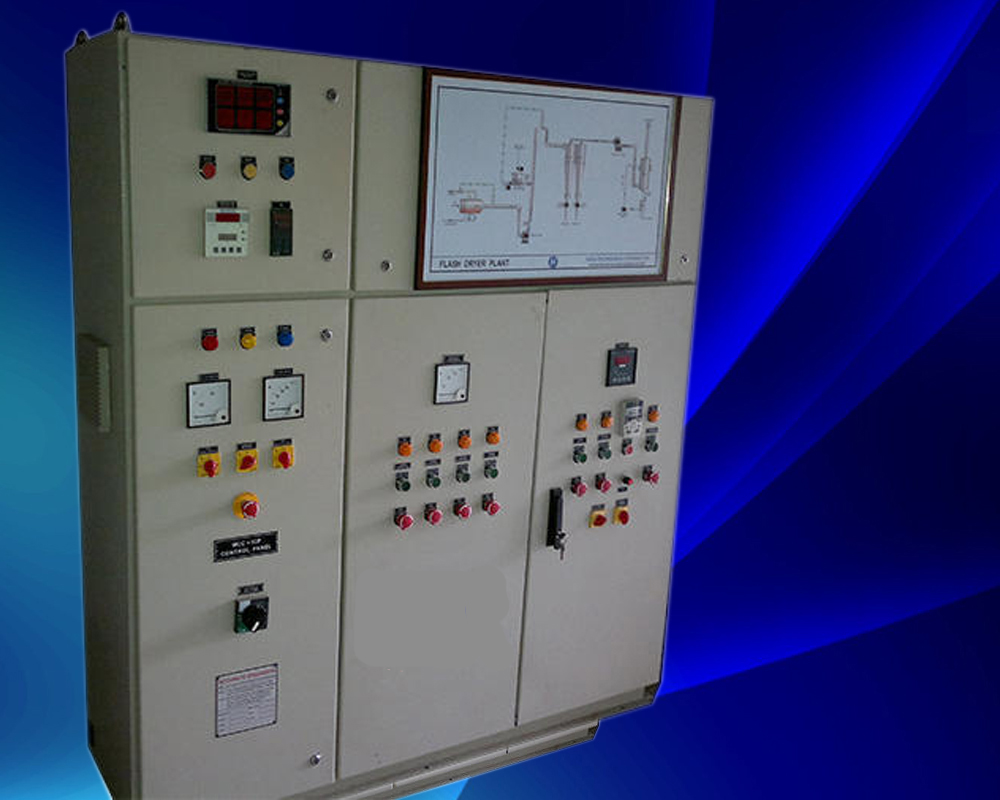

Control Desk and Mimic Panels
Custom-made control desks, with fiber glass or acrylic mimic diagrams, completely equipped with annunciation equipment, are designed and manufactured by us for all types of Process Control Industries. The mimic diagram is suitably housed on the front sloping vertical portion of the desk and the actuating pushbuttons and pilot lamps are housed on the horizontal sloping deck. Control gear equipment, like contactor, relays, and terminal blocks etc. are mounted both in the rear and in the front of the control desk.
Mimic & Annunciator panels are being used in the industry for many years to display process status and alarms. In Mimic Panels, the process is pictorially represented on the front side of a Control desk / Panel.
Generally, mimic displays are printed on polyester or polycarbonate sheets and provided with an acrylic front sheet for protection. LEDs and other Indicators can be fitted on the display for Process Indication.
Intelligent Switchboards with Computers and BMS Interface
We are a leading manufacturer and supplier of a wide range of Intelligent Switchboards with Computers and BMS Interface to our clients. These products are manufactured superior quality raw material which is sourced from the leading vendors of the market. The products that we offer in this category are manufactured using latest technology machines as per the set international norms. Offered products are made under the supervision of our quality check experts

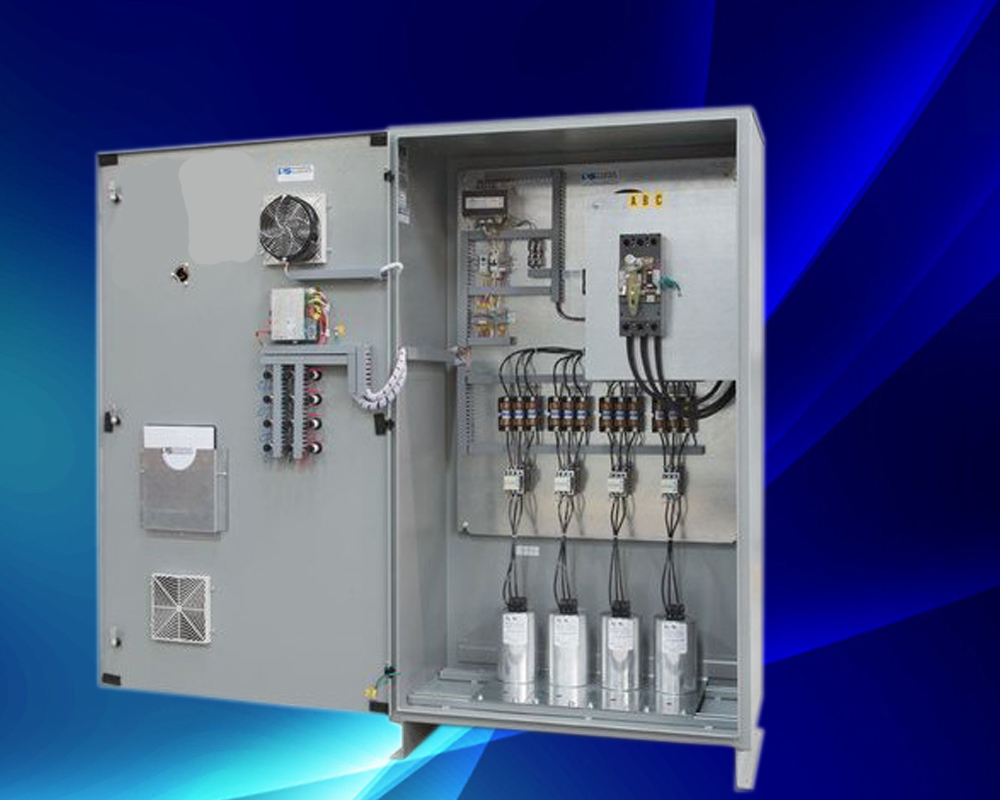

Capacitor Panel
Capacitor Panels are special devices designed as it verily increases the power factor correction by a large magnitude. Normally the electric load running all around a facility or residence is reactive in nature and Capacitor panel can prevent in great losses as mentioned earlier.
Capacitor Panels offer an unparalleled solution to this problem. As you probably already know capacitors are repositories of electric charge, but taking them in a cluster and adding relays, circuit breakers, etc. can-do wonders in power correction.

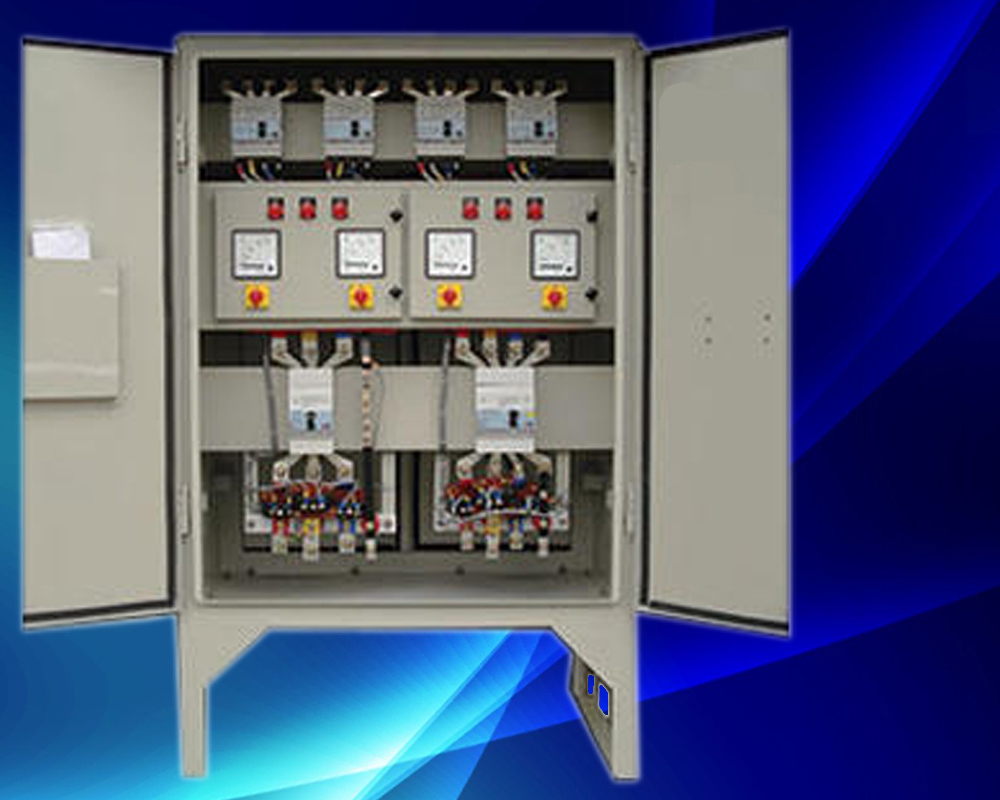

Feeder Pillar
JMR provides one of the most comprehensive ranges of feeder pillars, both shells and pre-wired with distribution equipment with a range of sizes and options to suit a wide variety of applications.
JMR designed feeder piar to a specific customer requirement. Feeder Pillar Panel made of CRCA Sheet, Pedestal mounted 415 volts, Powder coated painting on a suitable size angle iron frame (MS channel base for grouting in the RCC and proper gland in the bottom) with required hardware such as nuts, bolts, washers, provision for earthing with40mmx5mm GI strip on both sides of the feeder pillar panel, complete with Ammeter & Voltmeter along with se l ector switches and CTs, LED indicating lamps for each phase.
Meter Board
Meter Panel board for multiple meter compartments. The NBH Metering Panels are the indoor and outdoor type which conforms to IP 54 degree of protection. All Metering Panels are properly pre treated & then powder coated. Some of the Salient features of our Metering Panels.
Meter Panel board Totally enclosed, self-supporting, floor mounted, dust and vermin proof enclosure fabricated out of 14G/16G CRCA steel sheet enclosure with cross-linked foam gaskets on doors.

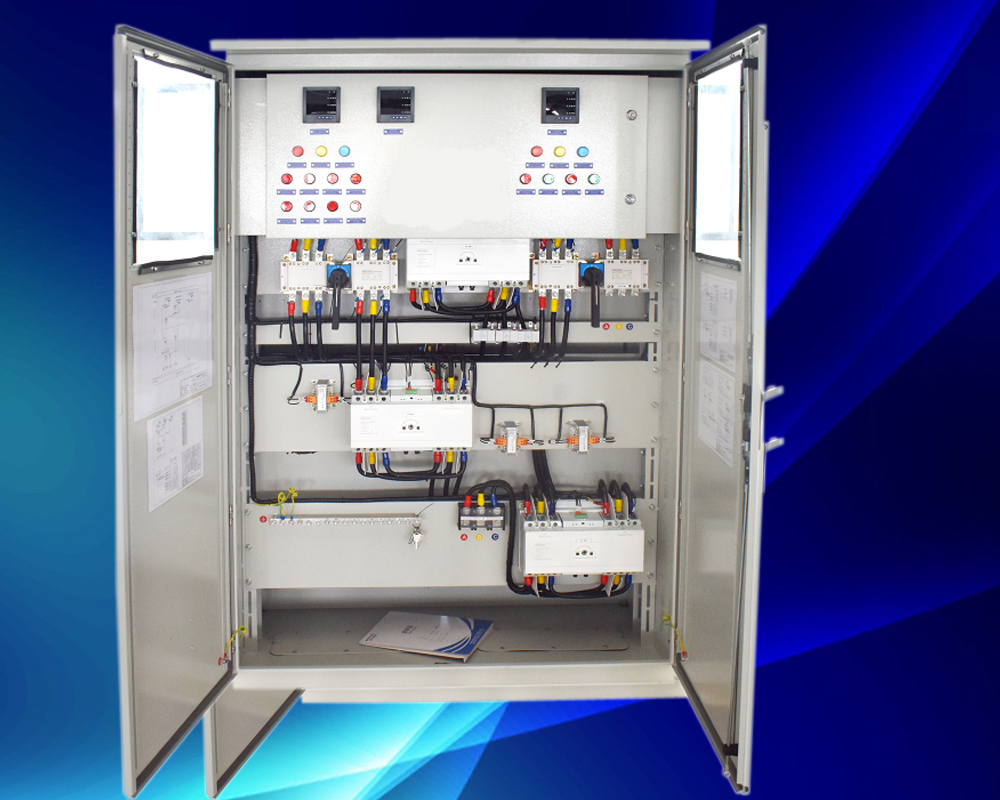

Main Distribution Board(MDB)
An MDB is a panel or enclosure that houses the fuses, circuit breakers and ground leakage protection units where the electrical energy, which is used to distribute electrical power to numerous individual circuits or consumer points, is taken in from the transformer or an upstream panel. An MDB typically has a single or multiple incoming power sources and includes main circuit breakers and residual current or earth leakage protection devices.

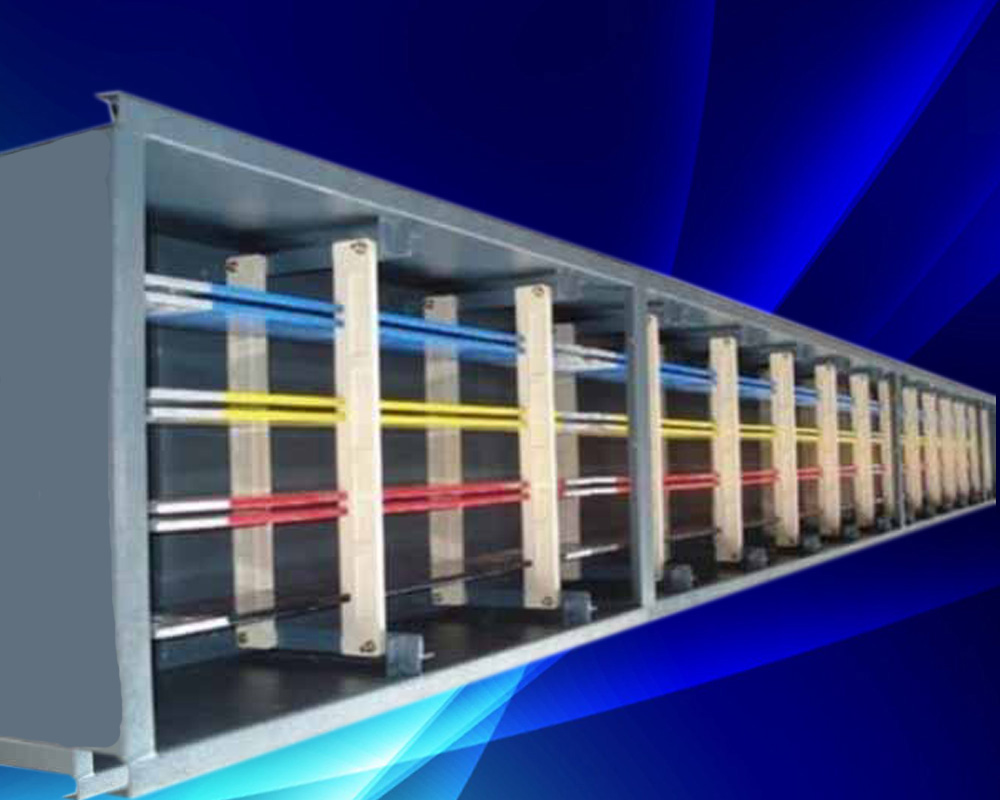

Bus Ducts and Rising Mains
We are a leading manufacturer and supplier of a wide range of Bus Ducts and Rising Mains to our clients. These products are manufactured superior quality raw material which is sourced from the leading vendors of the market. The products that we offer in this category are manufactured using latest technology machines as per the set international norms. Offered products are made under the supervision of our quality check experts who are well aware of the needs and demands of our clients. The products that we offer in this category are APFC Panel, LT Panel and AMF Panel. These products are in huge demand because of their durability and cost effectiveness.
